Management Server

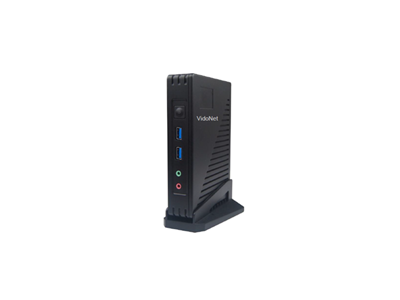

VTN-A300-TS-E

Brand
Model
VTN-A300-TS-E
Features
Device Access
  • Supports VidoNet private protocol, ONVIF protocol, standard RTSP, SDK
  • Supports adding devices by manually entering IP address, domain name or IP range or by auto search
Resource Management
  • Setting the network of the devices before quick adding them
  • Supports channel (or camera) group management and device area management
  • Supports centralized management of decoding devices, encoding devices and platform services
Device Configuration
  • Supports the basic configuration and user management of the devices
  • Supports the date, time and time zone, network, email and DDNS configuration of the devices
  • Supports getting the information of the device's HDDs
  • Supports multi-OSD setup of one channel
  • Supports the camera's ROI, video mask and motion detection settings
  • Supports intelligent analytics
  • Supports the camera's resolution, frame rate, VBR/CBR, image quality and bitrate settings
  • Supports the camera's brightness, contrast, saturation, hue, AZ settings, etc.
  • The parameters of multiply devices can be set at one time
  • Supports configuring record plan for storage devices
Temperature Measuremen
  • Temperature screening real-time view and full screen display
  • Recent seven-day statistics and statistical display
  • Real-time statistical information view: Suspected Fever Counts/Total Pass-by (Today) Counts/ Total Fever Counts/ Total Pass-Through Counts/ Mask Off (Today) Counts/ Mask Off (Total) Counts
  • Temperature exception pop-up window, information editable (including whether to go to the affected area, name, phone number, ID number, address, etc.)
  • The record can be searched according to time range, temperature range, whether to have a fever, whether to go to the affected area, processing status and key words, and it also can be exported to an Excel
  • Historical statistics: a maximum of 40-day data statistics; curve chart, bar graph and Excel can be exported and the data of each time period can be displayed.
  • Temperature measurement range configurable
  • Supports a lot of alarm linkages based on suspected fever people detection

Live View
  • Supports multi-screen display mode:
  • Supports 1/4/6/8/9/10/16/117/21/25/33/36/49/64/84/100 standard screen display mode
  • Supports 2/4/6/7/9/12/16/24/36/48 widescreen display mode
  • Supports customized screen display mode
  • Supports corridor mode
  • Supports adding fisheye and panoramic cameras
  • Supports channel group auto-switch
  • Supports stream self-adaption and one-key stream switch
  • Supports steam copy
  • Supports multi-monitor display
  • Supports instant playback
  • Supports decoding with hardware
  • Supports device’s smart area and result display
